Platform Scales

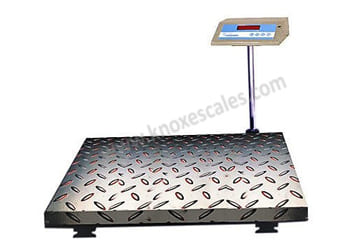

PLATFORM SCALES

Product description:

  • Heavy structure.
  • Bright LED display.
  • Overload protection.
  • Stainless steel/ MS checkered platter.
  • Tare function upto full capacity.



  • Linearity from least count to capacity.
  • low power indication.
  • Battery backup.
  • Auto zero tracking .
  • Membrane keypad.

Capacity Accuracy Platter Size
30/60 kg 5 g /10 g 300 X 300 mm
50/100 kg 5 g /10 g 400 X 400 mm
60/150 kg 10 / 20 g 450 X 450 mm
100/200 kg 10/20 g 500 X 500 mm
100/200 kg 10/20 g 500 X 500 MSCH
300 kg 50 g 600 X 600 mm
300 kg 50 g 600 X 600 MSCH
500 kg 50 g 600 X 600 mm
500 kg 50 g 600 X 600 MSCH
500 kg 50 g 600 X 600 Bending MSCH
500 kg 50 g 600 X 600 mm (Angle) MSCH
500 kg 50 g 500 X 500 600 X 600 mm (C Channel) MSCH

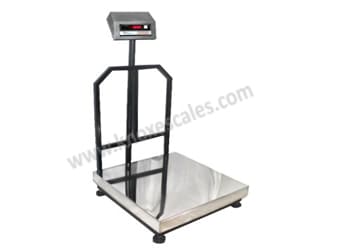

PLATFORM SCALES WITH 2 INCH INDICATOR

Platter Size : 400 X 500 mm, 500 X 600 mm

Product description:

  • Ss 2 Inch Indicator
  • Weighing and Counting Facility
  • Battery 6v/4v Option
  • Set Point Facility
  • Battery Backup

Options : Extra Display, Wind Shield, RS232


MAX 100kg 200kg 300kg
e 10g 20g 50g

HEAVY PLATFORM SCALES

Product description:

  • Heavy structure.
  • Bright LED display.
  • Overload protection.
  • Tare function upto full capacity.


  • Linearity from least count to capacity.
  • low power indication.
  • Battery backup.
  • Auto zero tracking.
  • Membrane keypad.

Capacity Acc. MS Checkered Platter Size LC Structure
500kg 50g 750 X 750 mm 1 Pipe 40 x 40 L
1 ton 100 g 750 X 750 mm 1 C Channel 3 x1.5
1 ton 100 g 900 X 900 mm 1 Pipe 50 x 50
2 ton 200 g 900 x 900 mm 1 C channel 3 x 1.5
1 ton 100 g 1000 x 1000 mm 4 C channel 3 x 1.5
2 ton 200 g 1200 X 1200 mm 4 C channel 3 x 1.5
3 ton 500 g 1500 x 1500 mm 4 C channel 5 x 2.5
